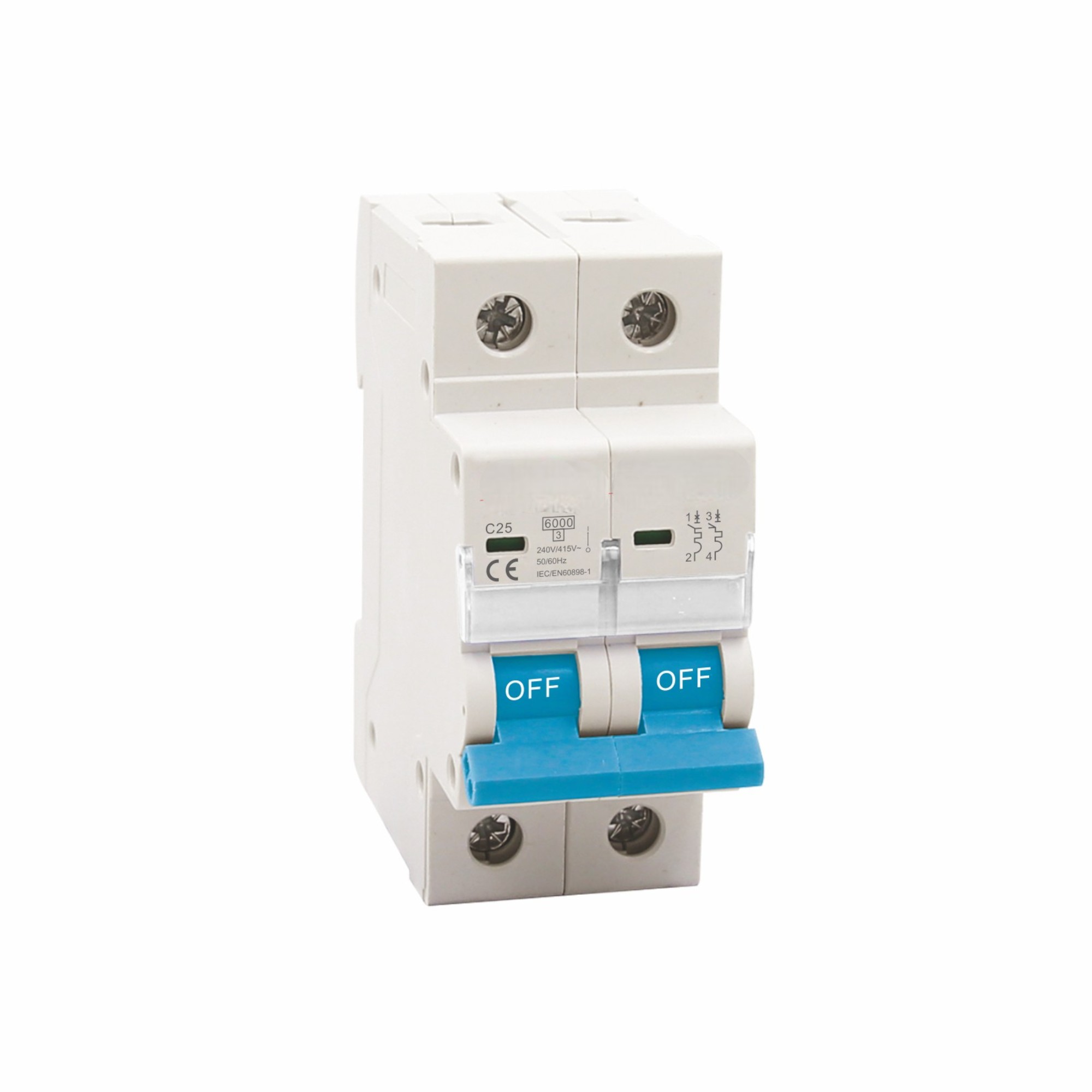

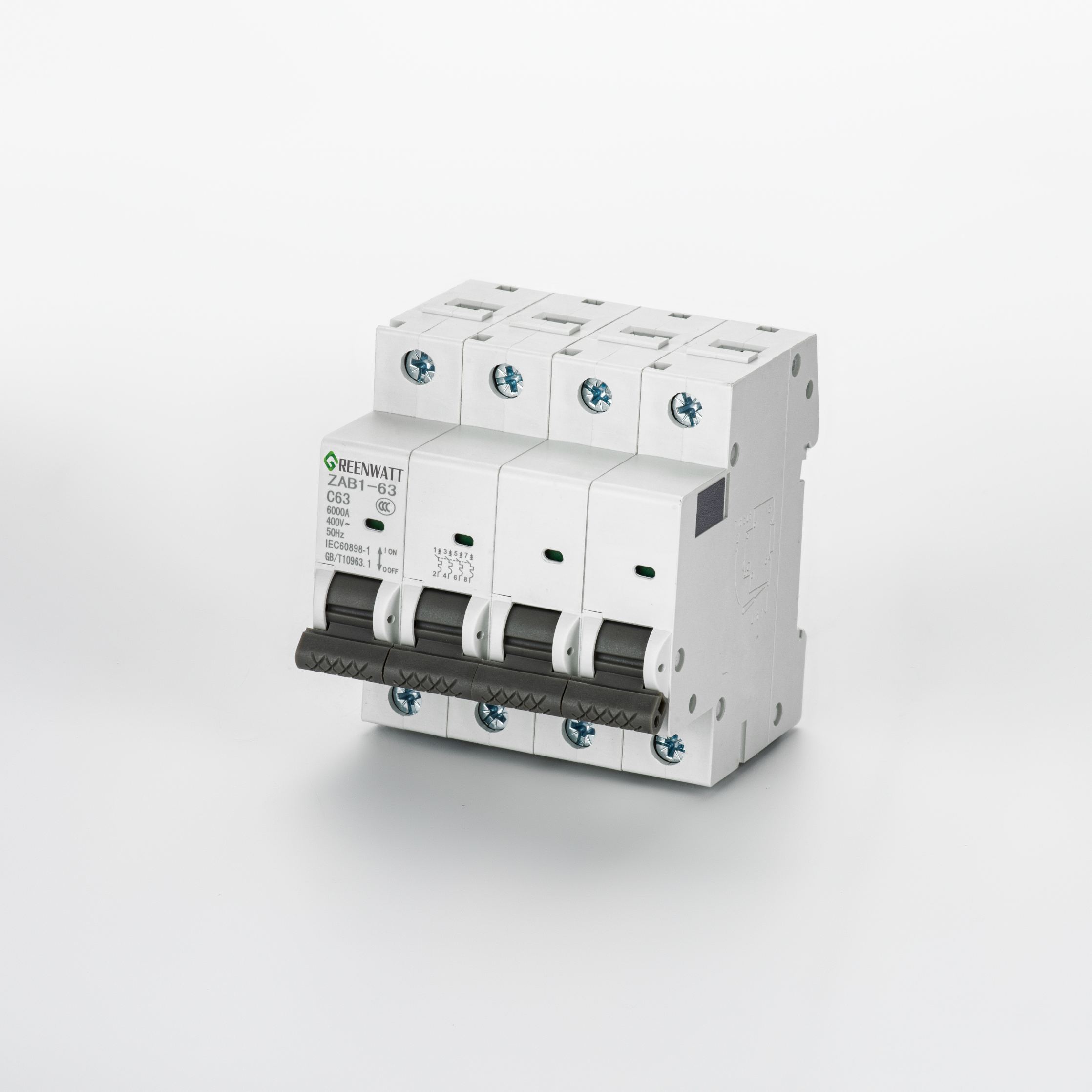

Thermal-Magnetic AC MCB | 1P-4P | 1-63a | B/C/D Curves | 415V | IEC/EN 60898-1
Nilai parameterPOLES 1P, 2P, 3P, 4PRated arus (dalam) 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63aVoltan Operasi Rated 1p: 240/415V AC; 2P/3P/4P: 415V ACTeknologi Perjalanan Teknologi Thermal-Magnet (Perlindungan Dual)Lengkung tripping b, c, dKapasiti Litar Pendek Rated (ICN) 6,000A (dal......
Hantar Pertanyaan
Penerangan Produk
Nilai parameter
POLES 1P, 2P, 3P, 4P
Rated arus (dalam) 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63a
Voltan Operasi Rated 1p: 240/415V AC; 2P/3P/4P: 415V AC
Teknologi Perjalanan Teknologi Thermal-Magnet (Perlindungan Dual)
Lengkung tripping b, c, d
Kapasiti Litar Pendek Rated (ICN) 6,000A (dalam ≤40A); 4,500A (IN = 50A/63A)
Kelas Kelas Mengehadkan Tenaga 3 I²T (IEC/EN 60898-1)
Voltan Penebat Nilai (UI) 415V AC
Dorongan menahan voltan (UIMP) 4,000V
Ketahanan mekanikal 10,000 operasi
Ketahanan elektrik 4,000 operasi
Mengetatkan tork 2.5 N · m (terminal M5)
Kekerapan rangkaian 50/60 Hz
Pematuhan Piawaian IEC/EN 60898-1
Teg Panas: AC MCB, Pemutus Litar Magnet Thermal, IEC 60898-1, B/C/D Curve MCB, 415V MCB, Kapasiti Breaking 6KA, Kelas Had Tenaga 3, 4-tiang MCB, Pemutus Keretapi DIN, Peranti Keselamatan Elektrik
